Grid Tie Solar Inverter 400W Intelligent Microinverter 22-50VDC MPPT IP65 WiFi Pure Sine Wave Converter for 110V 220V

IMI series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the erosion, built-in high-performance maximum power point tracking MPPT function better to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology.<br>The inverter output power can provide load priority use, extra electricity to the grid, efficient use of the inverter to the power emitted, electricity transmission rate of up to 99%.<br>The convenient way to directly scan the QR code to connect to is a major feature of it, allowing non-professional users to monitor the power generation system data in real time through a smartphone.<br>Color: Black<br>Material: metal+plastic<br><br>Input Voltage: 22-50VDC<br>Output Voltage: 230V(180-260VAC)<br>Model:400W<br>Input Data<br>Recommend PV:400W<br>Start-Stop voltage:22-50V<br>Reccommend PV Voc:33-50V<br>MPPT:23-50V<br>Maxi Input Current:13A<br>DC short current:20A<br>Output Data<br>Rated output current:@120VAC 3.3A;@230VAC 1.7A<br>Rated voltage:@120V(80-160VAC); @230V(180-260VAC)<br>Max units per branch:@120V: 3PCS;@230V:6PCS<br>Rrequency:50/60Hz(48-51Hz)<br>Output Efficiency<br>Static MPPT:0.995<br>Power factor: 99%<br>Max output:0.95<br>Self consumption:Less than 1W<br>:Less than 5%<br>Exterior<br>Ambient temperature:- 40℃to +65℃<br>Operating temperature:- 40℃to +82℃(inverter inside)<br>Dimensions(LxWxH):253mmx200mmx40mm<br>Weight:1.5kg<br>Waterproof Rating:IP65<br>Cooling:Self-cooling<br>Feature<br>Power transmission mode:Reverse transfer, load priority<br>Communication:WIFI(QR code scanning, automatic matching internet)<br>Monitoring System: free<br>Electromagnetic compatibility:EN50081.part1EN50082.part1<br>Grid disturbance:EN61000-3-2 Safety EN62109<br>Grid detection:DIN VDE 1026 UL1741<br><br>Package Contents:<br>1 x Grid Tie Solar Inverter<br><br>Only the above package content, other products are not included.<br>Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

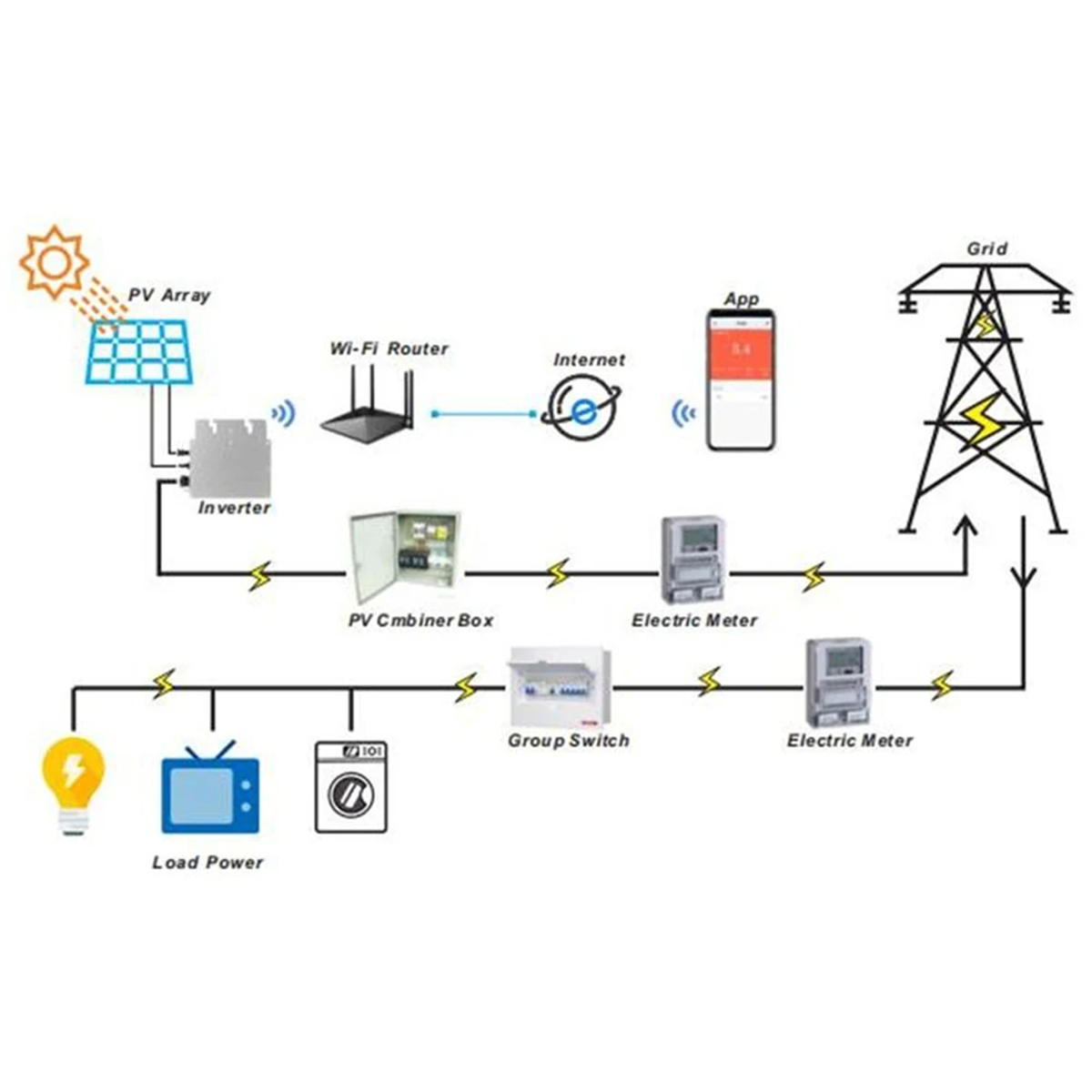

• The inverter output power can provide load priority use, extra electricity to the grid, efficient use of the inverter to the power emitted, electricity transmission rate of up to 99%.
• IMI series inverter Using IP65 waterproof streamline design which effectively prevent rainwater on the erosion, built-in high-performance maximum power point tracking MPPT function better to track changes in the solar luminosity and control different output power, effectively capture and collect sunlight AC electric power transmission using the reverse transmission technology.
• The convenient way to directly scan the QR code to connect to is a major feature of it, allowing non-professional users to monitor the power generation system data in real time through a smartphone.
• Color: Black
• Material: metal+plastic
